Introduction of 5052 aluminum sheet
The 5052 aluminum sheet contains 2.5% Mg, widely used as the antirust aluminium, It has good workability, medium static strength, high fatigue strength, good weldability, and good corrosion resistance, especially in marine atmospheres. It also has the low density and excellent thermal conductivity common to all aluminium alloys. It is commonly used in sheet, plate and tube form. 5052 aluminum sheet/coil is stronger than 1100 and 3003 and it is an excellent candidate for most processing techniques.
Features of our 5052 aluminum sheet
1. polished bright surface and excellent flatness control
2.Excellent anodizing quality, excellent mechanical property
3.The best welding characteristics out of all the aluminum
7.Good formability and resistance.

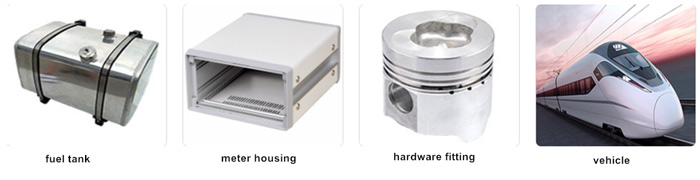

Application of 5052 aluminum sheet
The 5052 aluminum sheet is mainly used for the place demanding high plasticity and good weldability, low load parts working in liquid or gas medium, such as mailbox, gasoline or lubricating oil pipe, various liquid containers and other small load parts made by deep drawing: wire used for rivets.It is also often used for sheet metal parts of traffic vehicles and ships, instruments, street lamp brackets and rivets, hardware products, electrical shell and so on.

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Ni	Zn	Ti	Others		Aluminium min.
										Each	Total
5052	0.25	0.4	0.1	0.1	2.2-2.8	0.15-0.35	-	0.1	-	0.05	0.15	Re.

Alloy	Temper	Thickness (MM)	Width (MM)	Length (MM)
5052	O,H111,H112, H12,H14,H16, H18,H32,H34, H36, H38	0.2-300	500-4000	1000-16000

Alloy	Temper	Thickness (mm)	Tensile Strength Rm/Mpa	Extension strength Rp0.2/Mpa	Elongation (%)
			No less		A50mm	A
5052	O H111	>0.20-0.50	170-215	65	12	-
		>0.50-1.50			14	-
		>1.50-3.00			16	-
		>3.00-6.00			18	-
		>6.00-12.5	165-215		19	-
		>12.5-80.00			-	-
	H12	>0.20-0.50	210-260	160	4	-
		>0.50-1.50			5	-
		>1.50-3.00			6	-
		>3.00-6.00			8	-
	H22 H32	>0.20-0.50	210-260	130	5	-
		>0.50-1.50			6	-
		>1.50-3.00			7	-
		>3.00-6.00			10	-
	H14	>0.20-0.50	230-280	180	3	-
		>0.50-1.50			3	-
		>1.50-3.00			4	-
		>3.00-6.00			4	-

Alloy	Temper	Size	Standard
5052	H112	5*1500*3000	GB/T3880-2012
5052	H32	2*1000*2000	JIS H4000
5052	F	15.87*1650*5000	GB/T3880-2012
5052	H112	15*1500*3000	GB/T3880-2012
5052	H19	0.24*1594*C	ASTM B-209
5052	O	1.2*1250*2500	GB/T3880-2012
5052	H32	1*1250*2000	AMS 4016
5052	H14	0.7*1219*C	GB/T3880-2012
5052	H111	5*1500*2000	ASTM B-209
5052	H111	4*1500*6000	ASTM B-209
5052	H111	3*1500*5000	GB/T3880-2012
