5A06 aluminum sheet plate
Introduction
The
5A06 aluminum alloy is a high Mg alloy, the 5.8-6.8% Mg content, in the non-heat treatment alloy is a good strength, corrosion resistance, cutting good product. Rust-proof 5A06 aluminium plate 5A06 is a typical aerospace commonly used domestic Al-Mg alloy ductile materials, because of the high strength, good corrosion resistance and weldability, the different states of 5A06 aluminum plate is the main material in the field of aviation, aerospace, shipbuilding, missiles, automobile manufacturing etc. 5A06 Aluminum plate (AL-Mg) belongs to anti-rust aluminum with high content of Mg, has features such as high strength and corrosion stability.
Application
1. Excellent corrosion resistance makes 5A06 aluminum plate widely used in maritime applications such as ships, cars, aircraft welding parts, subway light rail, pressure vessels (such as liquid tank vehicles, refrigerated vehicles, refrigerated containers), refrigeration equipment, television tower, drilling equipment, transportation equipment, missile parts, armor and so on.
2. The 5A06 belongs to Al-Mg alloy, widely used, especially in the construction industry, is the most promising alloy. With good corrosion resistance, welding property, cold working property and medium strength.
Specification of our 5A06 aluminum plate
Alloy |
Temper |
Thickness (MM) |
Width (MM) |
Length (MM) |
5A06 |
F, H112, O,
H12, H14,
H16,H18,H19,
H22,H24,H26,
H28,H32,H34
H36,H38,H111,
H114,H116,H321 |
0.2-300 |
500-3000 |
1000-16000 |
Mechanical Property
Alloy |
Temper |
Thickness (mm) |
Tensile Strength
Rm/Mpa |
Extension strength
Rp0.2/Mpa |
Elongation (%)
|
No less |
A50mm |
A |
5A06 |
O |
0.50-4.50 |
315 |
155 |
16 |
- |
H112 |
>4.50-10.0 |
315 |
155 |
16 |
- |
>10.00-12.50 |
305 |
145 |
12 |
|
>12.50-25.00 |
305 |
145 |
- |
12 |
>25.00-50.00 |
295 |
135 |
- |
6 |
The main size of 5A06 aluminum plate stored for our customer
Alloy |
Temper |
Size |
Standard |
5A06 |
O |
4*1500*3000 |
GB/T3880-2012 |
5A06 |
O |
35*4100*4100 |
GB/T3880-2012 |
5A06 |
O |
12*4200*4350 |
GB/T3880-2012 |
5A06 |
H112 |
15*1500*3000 |
GB/T3880-2012 |
5A06 |
H112 |
60*1500*3000 |
GB/T3880-2012 |
5A06 |
H112 |
50*1200*2000 |
GB/T3880-2012 |

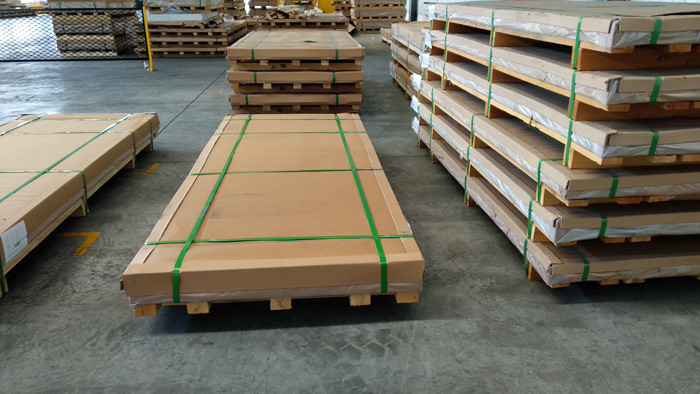

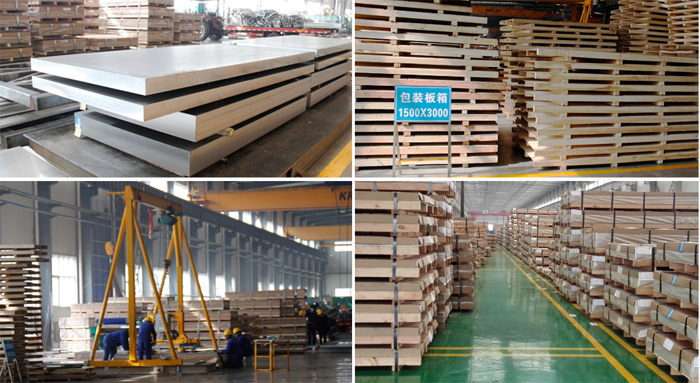

The package of
5A06 aluminum sheet
1. the paper or cover film between aluminum sheet to ensure the surface of the aluminum plate without intact or scratch
2. plastic or paper package to moisture-proof and waterproof, guarantee the aluminum plate clean with no dirt in transit, each package has moisture-proof desiccant.
3. Reinforce the wooden brackets with steel straps to avoid collision during transportation, so as to ensure that the geometry of the aluminum plate is unchanged.
4. Fumigation wooden pallet.
