With the development of shipping industry and the need of transportation efficiency, high-speed passenger ships are increasingly using marine grade aluminum sheet as structural material. Only 1/3 weight is steel, because of the light density and good corrosion resistance, the marine aluminum sheet become the best choice to make the ship lightweight, but high quality specifications of the marine aluminum sheet processing become a problem to be solved. Henan Mega Aluminum industry co., LTD has a SMS production of 4500 mm hot rolling units and 2850 mm cold rolling units and accessory equipment, based on the international first-class equipment, we can provide large specification aluminum plate, satisfy customer requirements in all respects.

Alloy	Main Temper	Main Size (mm)	Application
5083	H111, H116, H321	3*1500*6000 4*2000*6000 5*2000*8000 12*2000*8000 10*1500*6000 20*1500*6000	Keel, Side, bottom plating, wheelhouse, chimney
5086	H116, H321	5*1219*6100 5*2250*9000	Deck, bottom plating, wheelhouse,
5052	H32, H112	12*2000*3500 4*1500*3000 2.5*1700*2388	small ships, communication components, such as: communication on the cable bridge

Specification of our marine aluminum sheet
1. Alloy: 5083,5086,5456,5052, 5754,6063,6061,6082, etc.
2. Temper: O, H111, H112, H321,H32, etc.
3. Dimensions: T(1-120) x W(1000-3500) x L(1000-1500)mm
4. Certificate: DNV/ABS/Lioyds/BV
5. Feature: Corrosion resistance, high precision and fatigue resistance.
6. Tensile Strength: 170～360MPa
7. Yield strength (MPa)≥65
8. Modulus of elasticity（E）: 69.3～70.7Gpa

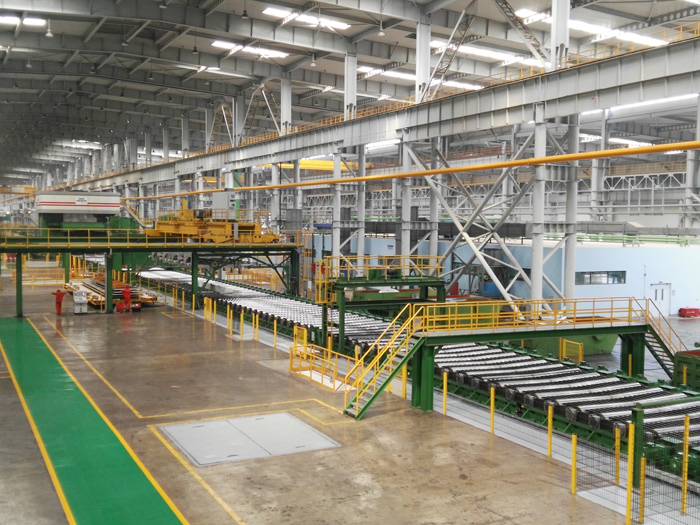

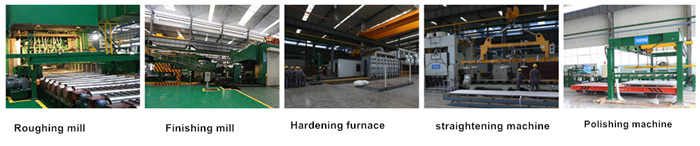

Our advanced equipment for marine aluminum sheet
Marine aluminum plate is mainly composed of 5 series and 6 series aluminum alloy, with 5083 aluminum plate is the representative, including 5083, 5086, 5052, 5383, 5454, 5456, 5754, 6061, 6063, etc.
