The 5182 aluminum is Al-Mg-Si alloy, the main elements of 5182 is Mg, and also with a small amount of Si, so the welding of 5182 aluminum sheet used in gas welding, argon arc welding, spot welding and seam welding performance are good.

In the car manufacturing, high-strength aluminum alloy(5182, 6016) is widely used in structural parts, chassis, body and other professional products. Due to its in crash tests, for example, have good energy absorption performance, so much for bumper, engine frame, door bumper, guard board, anti-lock braking system and airbag components such as security products.
The 5182 aluminum sheet is mainly used for the low-load parts that require high plasticity and good weldability, such as oil tank, gasoline or lubricating oil pipe, various liquid containers and other low-load parts made by deep drawing: wire rods are used for rivets.Thin plate can be used for processing cans cover, car body plate, control panel, reinforcement, bracket and other parts.

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Ni	Zn	Ti	Others		Aluminium min.
										Each	Total
5182	0.20	0.35	0.15	0.2-0.5	4.0-5.0	0.10	-	0.25	0.10	0.05	0.15	Re.

Specification of our 5182 aluminum sheet
Alloy: 5182
Thickness: 0.15-300mm
Width: 50-2800mm
Length: 1000-16000mm
Temper: O,H111 ,H19,etc.
Surface: Mill finish, Bright finish, paper interleaved, one side film, both sides film.

Alloy	Temper	Thickness (mm)	Tensile Strength Rm/Mpa	Extension strength Rp0.2/Mpa	Elongation (%)
			No less		A50mm	A
5182	O H111	>0.20-0.50	255-315	110	11	-
		>0.50-1.50			12	-
		>1.50-3.00			13	-
	H19	>0.20-1.50	380	320	1	-

Inspection Report of our 5182 aluminum sheet

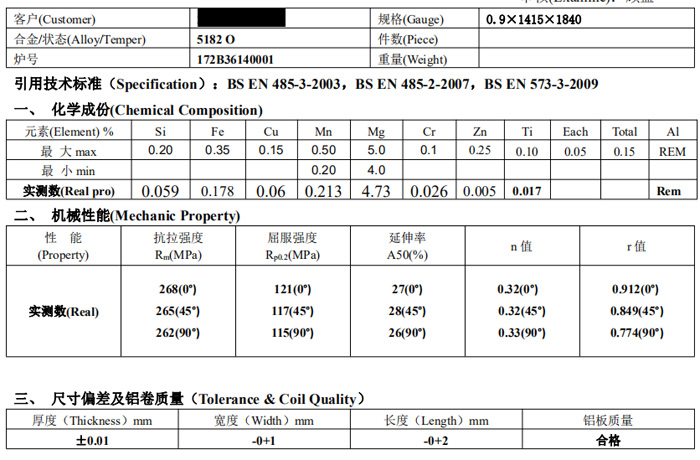

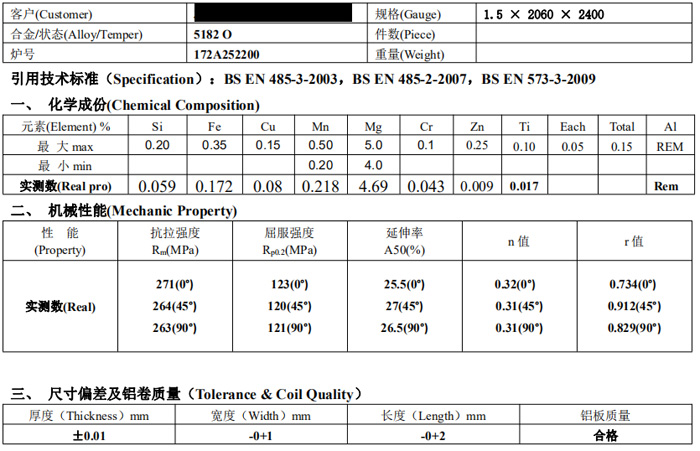

1. 5182-O,  0.9*1415*1840mm 2. 5182-O,  1.5 *2060 * 2400mm
Performance advantage of 5182 aluminum sheet
* good corrosion resistance, cold work-ability, and with medium strength
* gas welding, argon arc welding, spot welding and seam welding performance are good

Alloy	Temper	Size	Standard
5182	O	3*2000*6000	GB/T3880-2012
5182	O	1.5*2000*1900	GS93033
5182	O	2.5*1500*2150	GB/T3880-2012
5182	O	0.9*1940*1860	GS93033
5182	O	7*1500*6000	GB/T3880-2012
5182	O	10*2000*6000	GB/T3880-2012
5182	H111	1.25*1564*2200	EN485
5182	H111	5.1*2300*7300	EN14286
5182	H111	5*2086*9540	ASTM B209
5182	H19	0.25*1578*C	GB/T3880-2012
5182	H19	0.22*1540*C	GB/T3880-2012
5182	H19	0.4*1007*2200	GB/T3880-2012
5182	H22	0.85*1400*C	GB/T3880-2012

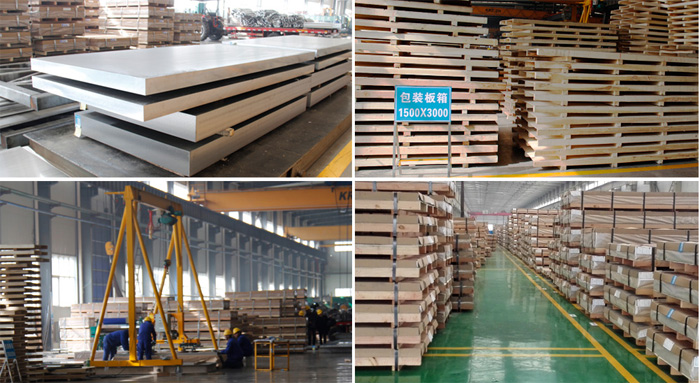

The package of 5182 aluminum sheet
1. the paper or cover film between aluminum sheet to ensure the surface of the aluminum plate without intact or scratch
2. plastic or paper package to moisture-proof and waterproof, guarantee the aluminum plate clean with no dirt in transit, each package has moisture-proof desiccant.
3. Reinforce the wooden brackets with steel straps to avoid collision during transportation, so as to ensure that the geometry of the aluminum plate is unchanged
4. Fumigation wooden pallet.
