5754 aluminum plate with medium strength, good corrosion resistance, weldability and easy to processing molding, etc, is a typical alloy, Al - Mg alloy is widely used in the aviation, automobile, ship, and other fields, the strength of the aluminum alloy mainly has Mg atoms in solid solution strengthening and fine grain strengthening, strengthening of aluminum alloy is a kind of heat treatment.With the rapid development of the automobile industry all over the world, deformed aluminum alloy is more and more used in the manufacture of doors, floor boards, body frames and other structural parts. 5754 aluminum plate in different states are the main raw materials used in the automobile manufacturing industry (car doors, molds, seals) and canning industry.

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Ni	Zn	Ti	Others		Aluminium min.
										Each	Total
5754	0.4	0.4	0.1	0.5	2.6-3.6	0.3	-	0.2	0.15	0.05	0.15	Remainder

Alloy	Temper	Thickness (MM)	Width (MM)	Length (MM)
5754	O,H111,H112, H12,H14,H16, H18,H32,H34, H36, H38	0.2-500	500-3000	1000-16000

Alloy	Temper	Thickness (mm)	Tensile Strength Rm/Mpa	Extension strength Rp0.2/Mpa	Elongation (%)
			No less		A50mm	A
5754	O H111	>0.20-0.50	190-240	80	12	-
		>0.50-1.50			14	-
		>1.50-3.00			16	-
		>3.00-6.00			18	-
		>6.00-12.50			18	-
		>12.50-100.00			-	17
	H12	>0.20-0.50	220-270	170	4	-
		>0.50-1.50			5	-
		>1.50-3.00			6	-
		>3.00-6.00			7	-
	H22 H32	>0.20-0.50	220-270	130	7	-
		>0.50-1.50			8	-
		>1.50-3.00			10	-
		>3.00-6.00			11	-
	H14	>0.20-0.50	240-280	190	3	-
		>0.50-1.50			3	-
		>1.50-3.00			4	-
		>3.00-6.00			4	-
	H24 H34	>0.20-0.50	240-280	160	6	-
		>0.50-1.50			6	-
		>1.50-3.00			7	-
		>3.00-6.00			8	-
	H16	>0.20-0.50	265-305	220	2	-
		>0.50-1.50			3	-
		>1.50-3.00			3
		>3.00-6.00			3	-
	H26 H36	>0.20-0.50	265-305	190	4	-
		>0.50-1.50			4	-
		>1.50-3.00			5	-
		>3.00-6.00			6	-
	H18	>0.20-0.50	290	250	1	-
		>0.50-1.50			2	-
		>1.50-3.00			2	-
	H112	>6.0-12.50	190	100	12	-
		>12.50-25.00		90	-	10
		>25.00-40.00		80	-	12
		>40.00-80.00		80	-	14

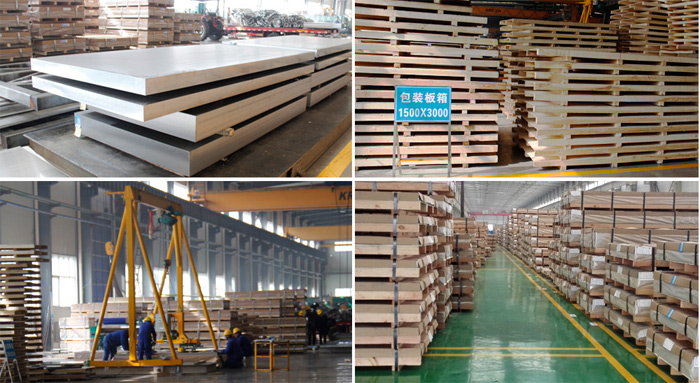

The package of 5754 aluminum sheet
1. the paper or cover film between aluminum sheet to ensure the surface of the aluminum plate without intact or scratch.
2. plastic or paper package to moisture-proof and waterproof, guarantee the aluminum plate clean with no dirt in transit, each package has moisture-proof desiccant.
3. Reinforce the wooden brackets with steel straps to avoid collision during transportation, so as to ensure that the geometry of the aluminum plate is unchanged.
4. Fumigation wooden pallet.
