5454 aluminum sheet is a typical anti-rust aluminum, and high strength, about 20% higher than the 5052 aluminum sheet. The product quality far exceeds the national standard, and provides the original factory warranty, 5454 aluminum sheet in the automobile, aluminum tank car barrel body and other fields widely used, good reputation.

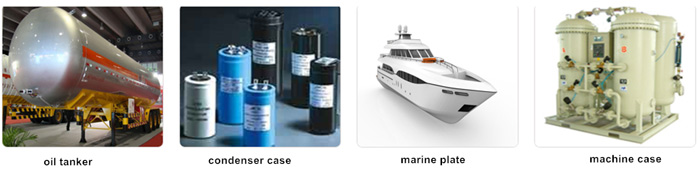

Application
Oil tank truck
Pressure Vessels, Containers, Boilers
Marine & Off-shore incl. Masts,
Pylons, poles & masts
Marine facility pipeline
Automobile wheel

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Ni	Zn	Ti	Others		Aluminium min.
										Each	Total
5454	0.25	0.40	0.10	0.50-1.0	2.4-3.0	0.05-0.20	-	0.25	0.20	0.05	0.15	Re.

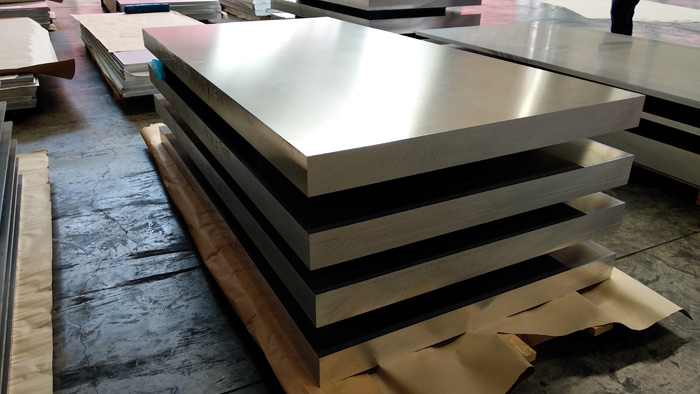

Specification of our 5454 aluminum sheet
Alloy: 5454
Temper: O, H111, H112, H116, H321,H12,H14, H16, H18, H32, H34, H36
Thickness: 0.2--500mm
Width: 500--3000mm
Length: 1000--16000mm
Surface: Mill finish, Bright finish, paper interleaved, one side film, both sides film.

Alloy	Temper	Thickness (mm)	Tensile Strength Rm/Mpa	Extension strength Rp0.2/Mpa	Elongation (%)
			No less		A50mm	A
5454	O H111	>0.20-0.50	215-275	85	12	-
		>0.50-1.50			13	-
		>1.50-3.00			15	-
		>3.00-6.00			17	-
		>6.00-12.50			18	-
		>12.50-80.00			-	16
	H12	>0.20-0.50	250-305	190	3	-
		>0.50-1.50			4	-
		>1.50-3.00			5	-
		>3.00-6.00			6	-
	H22 H32	>0.20-0.50	250-305	180	5	-
		>0.50-1.50			6	-
		>1.50-3.00			7	-
		>3.00-6.00			8	-
	H14	>0.20-0.50	270-325	220	2	-
		>0.50-1.50			3	-
		>1.50-3.00			3	-
		>3.00-6.00			4	-
	H24 H34	>0.20-0.50	270-325	200	4	-
		>0.50-1.50			5	-
		>1.50-3.00			6	-
		>3.00-6.00			7	-
		>1.50-3.00			3	-
		>3.00-4.00			3	-
	H26 H36	>0.20-1.50	290-345	230	3	-
		>1.50-3.00			4	-
		>3.00-6.00			5	-
	H26 H36	>0.20-3.00	310	250	3	-
	H112	>6.00-12.50	220	125	8
		>12.50-40.00	215	90	-	9
		>40.00-120.00			-	13

Alloy	Temper	Size	Standard
5454	O	5*1800*3000	GB/T3880-2012
5454	O	7*2600*3000	GB/T3880-2012
5454	O	5*1800*9000	GB/T3880-2012
5454	H111	6*2000*3000	GB/T3880-2012
5454	H111	7*1800*3000	GB/T3880-2012
5454	H22	0.9*600*C	GB/T3880-2012
5454	H32	5.7*2000*7700	GB/T3880-2012
5454	H32	6*2000*6500	GB/T3880-2012
5454	H24	0.9*1993*C	YS/T 590

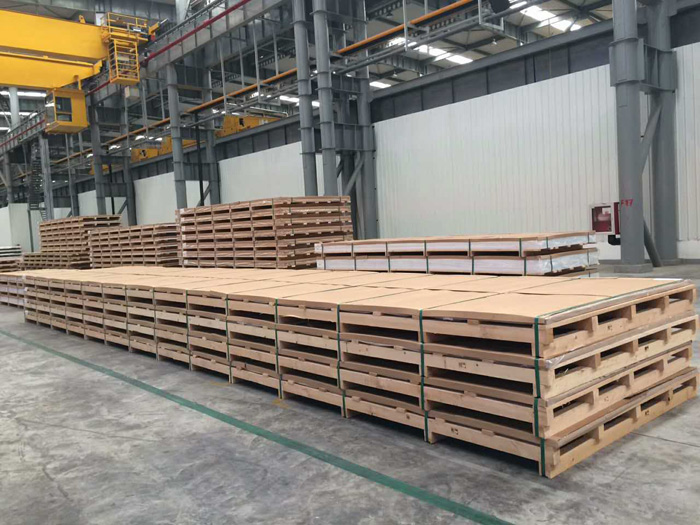

The package of 5454 aluminum sheet
1. the paper or cover film between aluminum sheet to ensure the surface of the aluminum plate without intact or scratch
2. plastic or paper package to moisture-proof and waterproof, guarantee the aluminum plate clean with no dirt in transit, each package has moisture-proof desiccant.
3. Reinforce the wooden brackets with steel straps to avoid collision during transportation, so as to ensure that the geometry of the aluminum plate is unchanged.
4. Fumigation wooden pallet.
